هدر برد CH32V103C8T6 mini با رابط USB Type-C

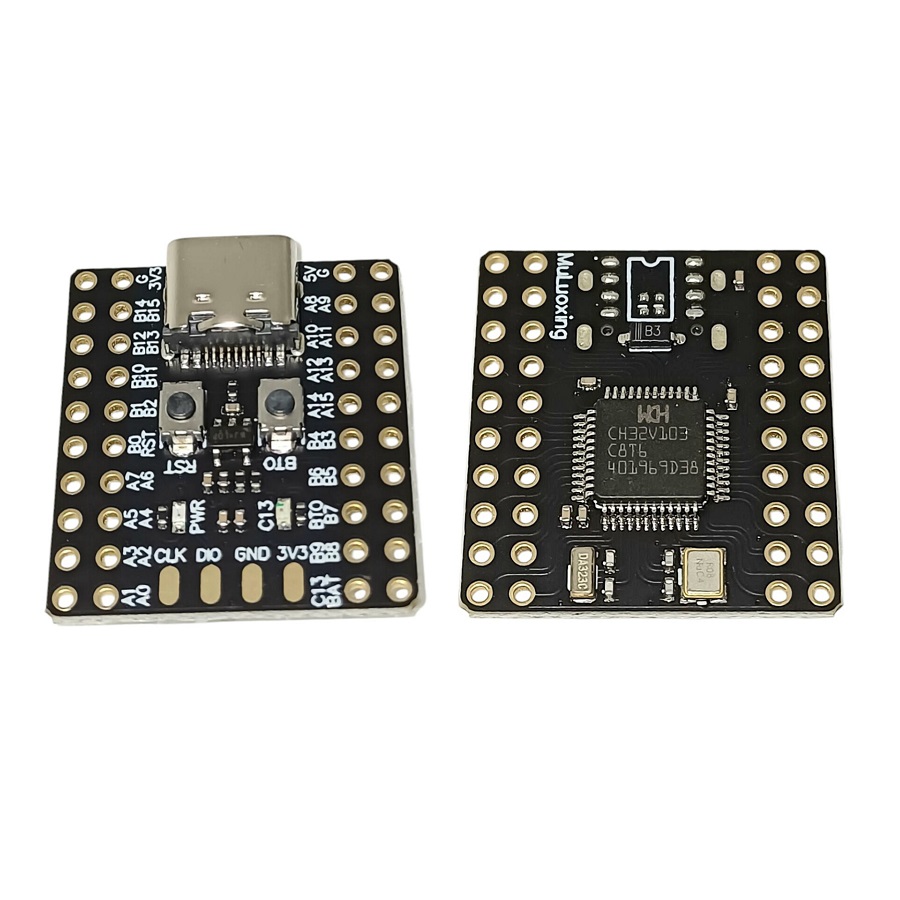

CH32V103C8T6 mini board (without CH340)
Features
This board a small size with a single TYPE-C port design, and the USB function and serial port function are designed to be mutually exclusive.
For small volume control schemes, all IO ports are simultaneously led out on both sides of the needle arrangement, and the SWD download port is separately led out (both sides of the needle arrangement IO ports are simultaneously led out).
Easy to use, MINI32 can download programs through the onboard serial port.
High security, the chip has hardware encryption and access control functions, which can protect the security of the system.
Support low-power mode, the chip supports multiple low-power modes, which can achieve energy-saving application design.
Parameter:
Buttons: RST (reset button), BTO (BOOT mode selection button)
LED: PWR (POWER indicator light), C13 (user controlled indicator light, PC13 controls LED cathode)
PCB dimensions (excluding SWD download port): 25.40 * 22.86MM (100MIL=2.54MM)
PIN spacing: 2.54MM;
Needle spacing on both sides: 15.24MM (600MIL) on the inner side, 20.32MM (800MIL) on the outer side
Specifications
Main controller: CH32V103C8T6
Specification: CH32V103C8T6 (without CH340)
Download methods: SWD/serial port, SWD/USB
C port function: serial port, USB
Kernel: RISC-V3A
Main frequency: 80MHz
SRAM[KB]：20
FLASH[KB]：64
C-port power input: 5V@500MA
PIN POWER:5V/ 3.3V@500MA

Package include:
1X CH32V103C8T6 mini board (without CH340)
