ماژول کنترل دما و رطوبت دیجیتال XH-M452

XH-M452 Thermostat Temperature Humidity
Thermometer Hygrometer Module DC
Description

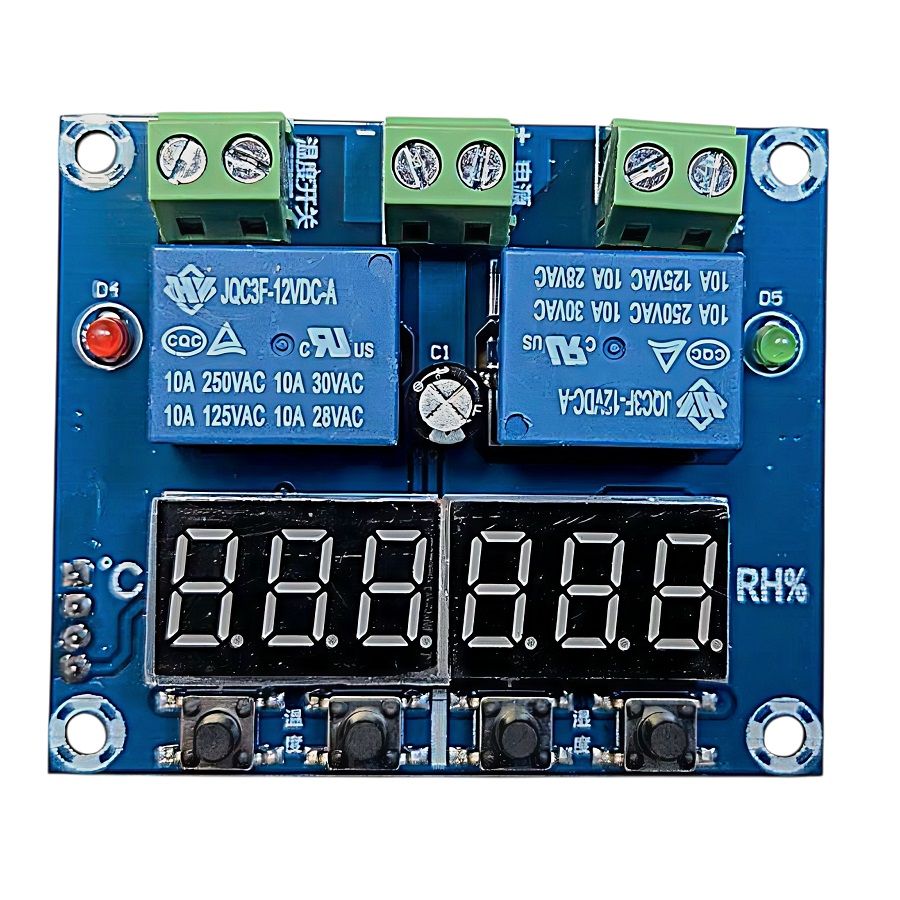

– DC 12V XH-M452 Temperature And Humidity Controller Module Digital Display High Accuracy
Dual Output Automatic Constant Temperature And Humidity Control Board
– Set the temperature + : Normal display mode, long press the + key for 3 seconds, start
temperature numerical flashing, press the + / – key to set values.
– If you do wrong operation ,it will return to detect temperature display automatically after 5seconds .
– Set the temperature – : Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key to set value.
– Restore the factory Settings: At the same time long press temperature, and humidity + key for 3
seconds, digital display, 888, 888.
Specification
– Material: Plastic
– Product detailed size: module size 55x65mm/2.17×2.56inch, sensor size
26x55mm/1.02×2.17inch
– Model: XH-M452
– Voltage: DC 12V
– Temperature range: -20°C to 60°C
– Temperature range: 0% to 100%RH
– Control accuracy: 0.1°C, 0.1RH

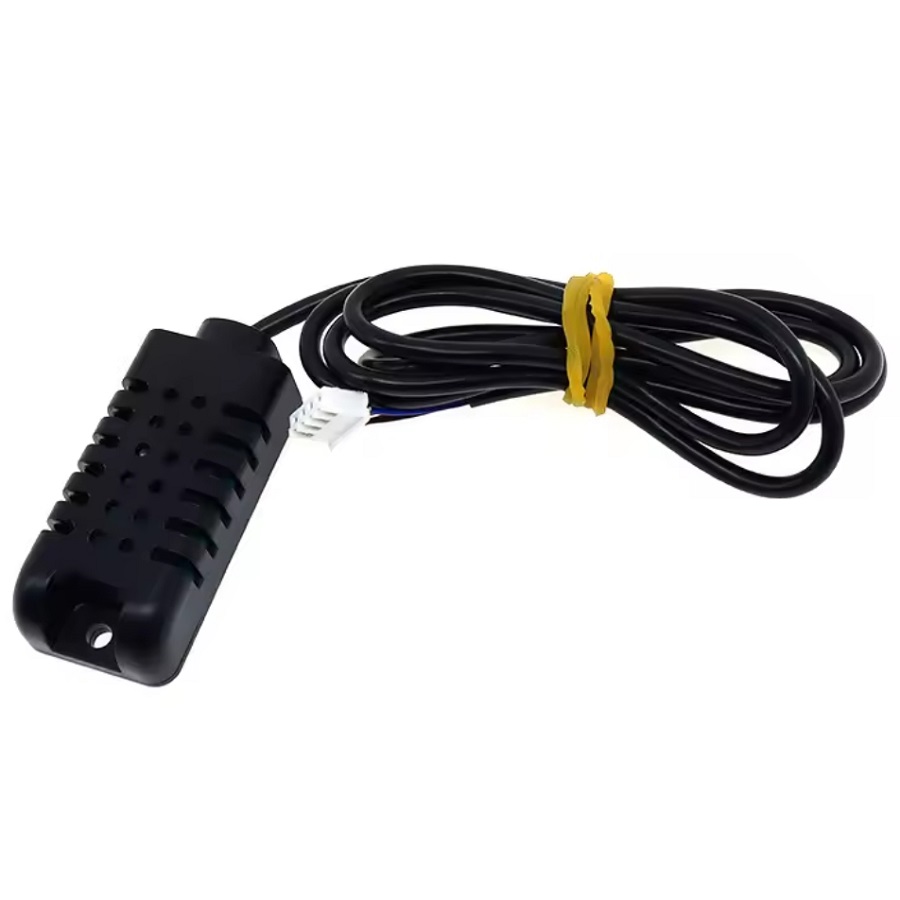

– Detector probe: integrated sensor
– Output type:Relay output
– Output capacity: up to 10A
