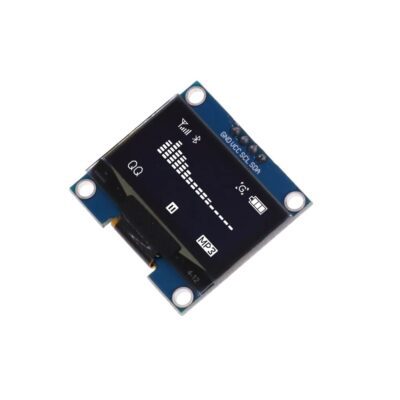

ماژول نمايشگر OLED سفيد 1.3 اينچ دارای ارتباط I2C

White Oled Display 128×64 1.3 ” I2C SH1106
white Oled Display 128×64 1.3″ I2C SH1106 is a screen based on an SH1106 driver that allows you to display text and graphics with an I2C communication interface, being able to work with a voltage of 3V to 5V.
The 128×64 white Oled Display is ideal for displaying text, bitmaps, pixels, rectangles, circles and lines or in projects for monitoring, industrial equipment, portable medical equipment or Smartwatch.
SPECIFICATIONS AND FEATURES
Type: Oled Display
Operating Voltage: 3V – 5.5V DC
Resolution: 128×64 pixels – 1.3 “
Monochrome: White Pixels
Driver: SH1106
Interface: I2C (I2C address: 0x3C)
Pins: 4 (VCC, GND, SCL and SDA)
Dimensions: 35mm x 33mm
Viewing angle: >160º
Ultra low power consumption: 0.04W when all pixels are on
Working temperature: -30ºC ~ 70ºC
Weight: 5g
RESOURCES
Adafruit_SH1106
Adafruit GFX graphics
Adafruit_BusIO
U8glib
Datasheet Display Oled 128×64 SH1106
Connection and code in Arduino IDE
To use the 1.3″ OLED screen on our development board, we will make the following connection corresponding to I2C communication.

To carry out our test code in Arduino IDE, we mainly require the following libraries
Adafruit_SH1106
Adafruit GFX graphics
Adafruit_BusIO
Later, in the examples of the Adafruit_SH1106 library we will open the following example sh1106_128x64_i2c:

And we will proceed to upload the sample code to our development board.
