ماژول محافظ شارژ باتری لیتیومی 4 سل 40A

4S 40A 16.8V 18650 Lithium Battery Charger Board Protection Module
Brand: MAXCELL

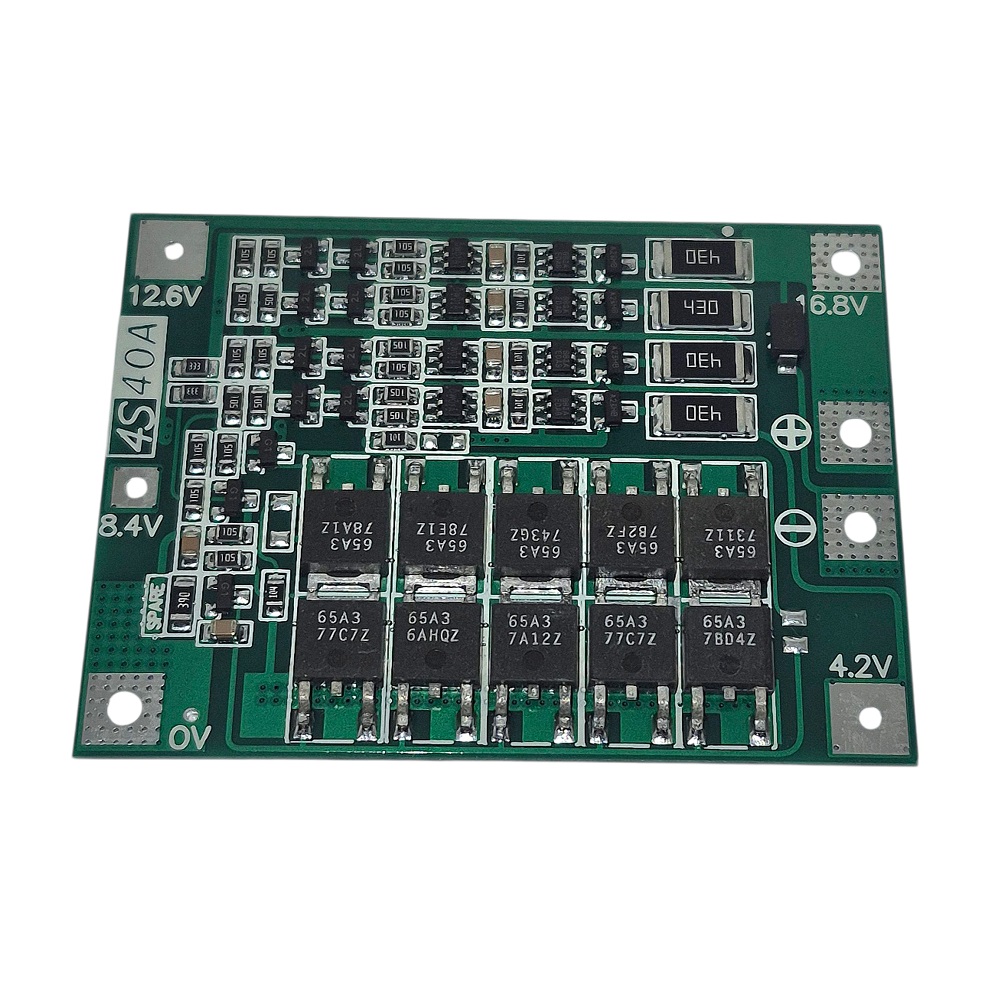

Description
Lithium Battery Charger BMS Protection Board
Type:Voltage Regulator
1.Scope of application: Suitable for lithium batteries with a nominal voltage of 3.7V and a full voltage of 4.2V (Including
18650,26650, polymer lithium batteries, no restrictions on the size)
2.Product size: 45 * 60
3.Charging voltage: 16.8V ~ 18.1V
4.Continuous discharge current (upper limit): 40A (if the heat dissipation environment is not good, please reduce the load
current)
5.Continuous charging current (upper limit): 20A
6.Suitable for electric drills with starting current below 80A and power below 230W, with balanced charging function.
Note
Note 1: Successful start of electric drill requires 4 10C-20C power batteries, or 8 5C-10C power batteries(recommended power battery models: SONY VTC4, VTC4A, VTC4A, VTC6), 0V and 12.6V connecting cables, Use copper wire of 3 mm squareor more (no nickel sheet !!).

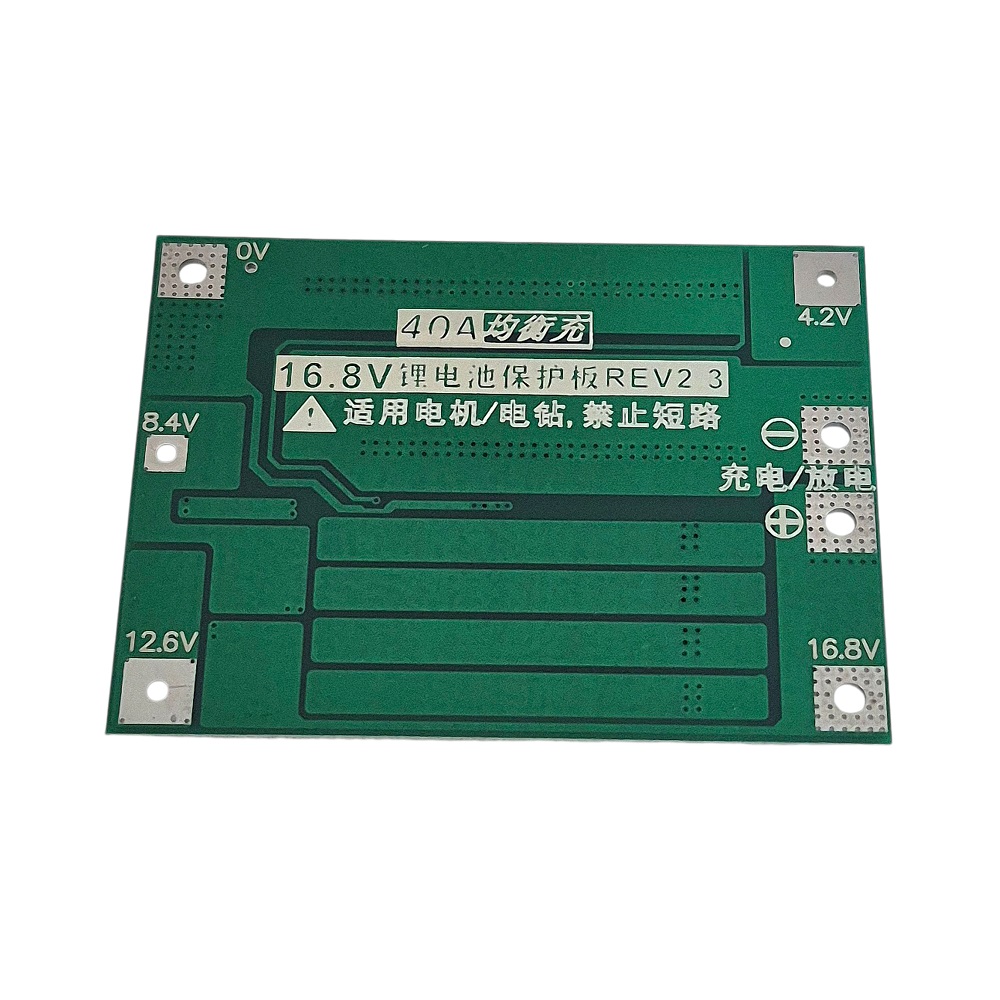

Note 2: Connect 0V, 4.2V, 8.4V, 12.6V, 16.8V strictly according to the figure. When welding the wire, do not touch any components on the board. Do not intentionally short circuit.
Note 3: When welding the battery for the first time or charging, as long as a single battery exceeds 4.2V, the “430” resistor will heat up and discharge (discharge to about 4.19V to stop heating. If the “430” resistor is extremely hot (not hot enough) (Dare to touch), please check whether the wrong wire is connected.
Package Include
1 x Lithium Battery Charger BMS Protection Board

Precautions
1. Pay attention to the input and output voltage and load current, do not use more than the power of the module and cause it to burn.
2. This module has an anti-static protection circuit, please do not touch it with your hands when working on the module to avoid damaging it.

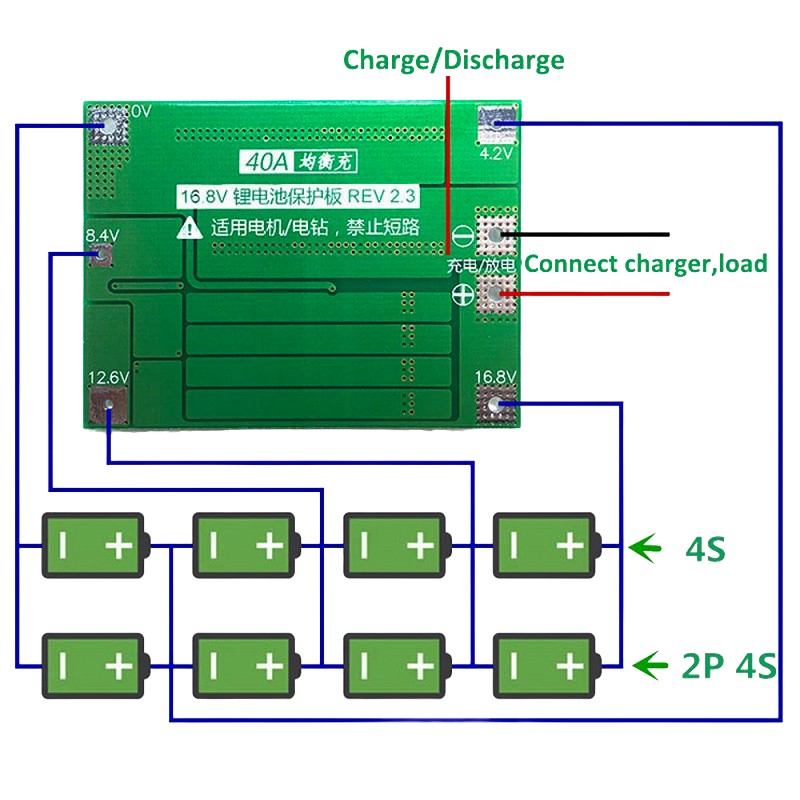

Connection Diagram
