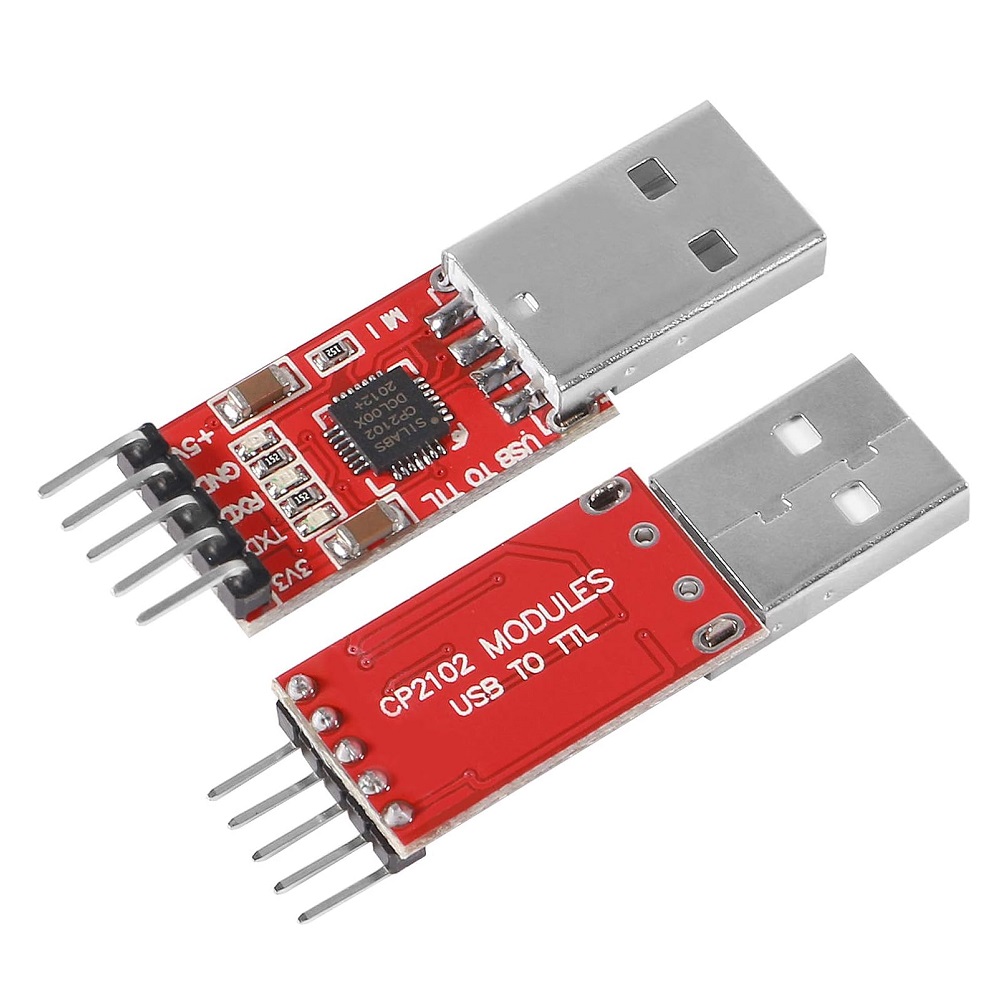

CP2102 USB to TTL converter
The CP2102 USB to TTL Converter is an interface that facilitates communication between a PC and a microcontroller using the USB protocol.
It is compatible with a wide variety of microcontrollers, including Arduino, PIC, Atmel AVR, ESP8266, ESP32, among others.
Similar to the FTDI232 and PL2303HX converters, the CP2102 offers the advantage of a more affordable price and greater driver support.
In addition, it can function as a “programmer” for the Arduino Mini Pro .
SPECIFICATIONS AND FEATURES
Type: USB to TTL converter
USB to UART chip: CP2102
USB connector: USB Type A
USB 2.0 Full Speed 12Mbps specification
TTL: +3.3V, TXD, RXD, GND and +5V pins
LED: POWER | TX / RX
Integrated crystal oscillator
Internal 3.3V voltage regulator
Output voltage:
5V (max. 1A) and 3.3V (max. 10mA)
576 Byte Receive Buffer
640 Byte Transmission Buffer
Supported Operating Systems: Windows 10, 8, Vista, 7, XP, 2000, 98SE and Linux 2.40
Working temperature: -40° to 80°C
Dimensions: 41mm x 15mm
Package

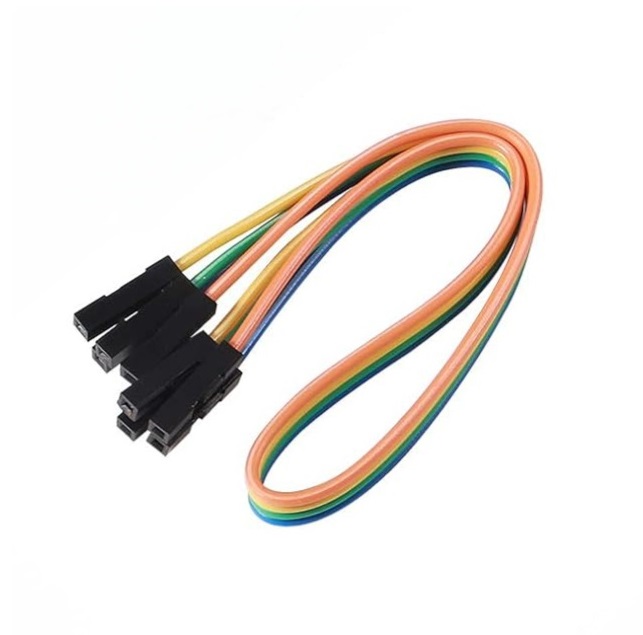

1 x Module With Jumper Wire
