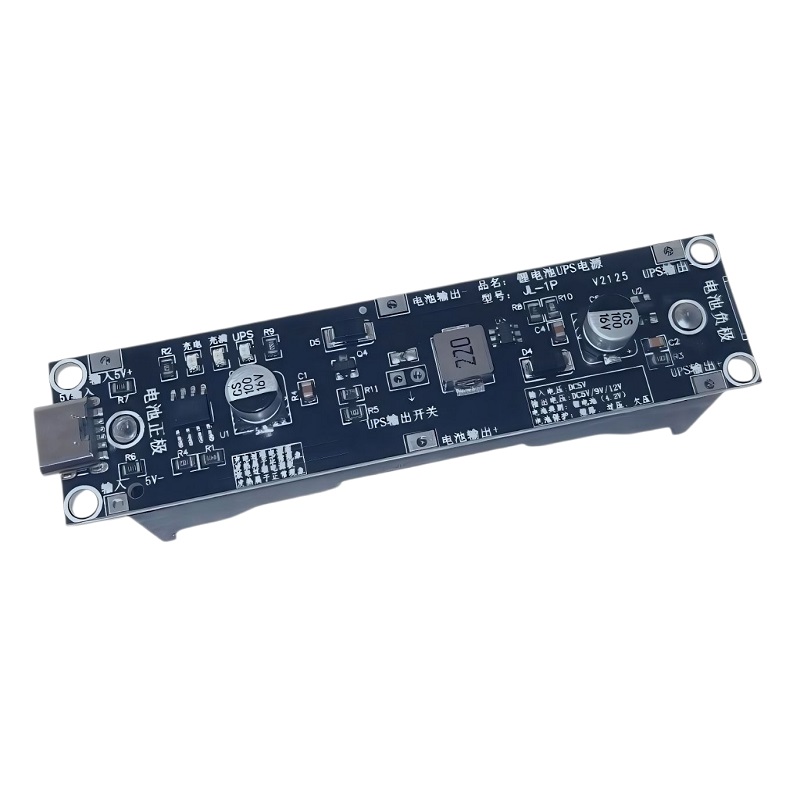

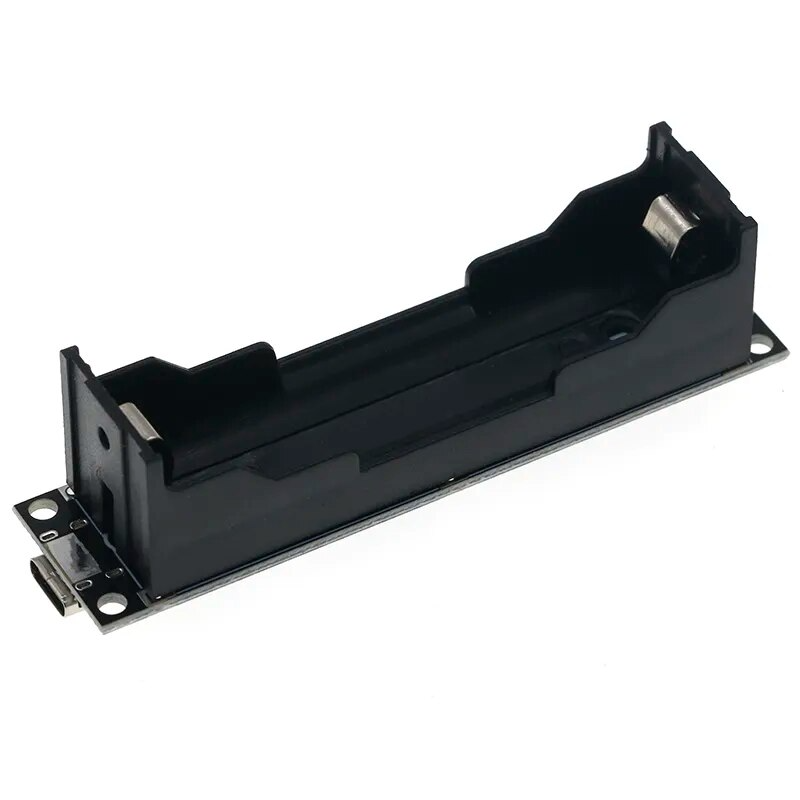

18650 Battery UPS power supply module
Description
specifically designed for use with 18650 lithium-ion batteries.
This module serves as a backup power source, providing continuous power to devices during outages or fluctuations in the main power supply.
It also includes features for charging the connected 18650 batteries.
NOTE
1) The charging power supply current should be greater than> theoutput current.
2) This module must be equipped with a button to switch ON/OFF.
Technical Specifications
Input Voltage:
5V (via USB-C connection)
Output Voltage:
12V (Stable 12V step-up output regardless of battery charge)
Output Current
Max. 800mA
Battery Type
Suitable for 18650 Li-Ion batteries.
Charging Current
Integrated charging circuit for efficient and safe charging
Battery Charging Voltage: 4.2V

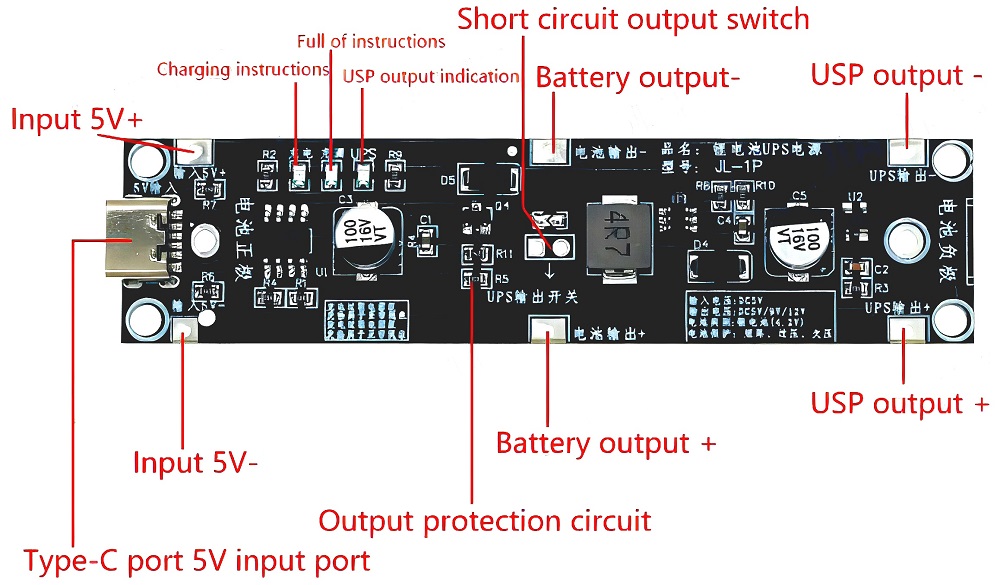

Connectivity
USB-C port for wide compatibility
LED Indicator
Charging status indicator for visual feedback
Battery Protection
The built-in 2.6V cutoff function protects your 18650 battery from deep discharge, extending the battery life and preventing damage.
Efficient Charging
The integrated charging circuit ensures efficient and safe charging of your battery, with a charging voltage of 4.2V.
