ماژول درایور استپ موتور A3967

Stepper Motor Driver A3967
The Easy Driver is a module that allows you to control 4-, 6-, or 8-wire bipolar stepper motors.
It’s designed based on the A3967 IC and can operate with 5V or 3.3V pulses, making it very versatile.
Connect your microcontroller to the module and you’ll achieve highly precise motor control.
It has two selection pins for adjusting the motor’s step resolution.
The module requires a 6 to 30V power supply to power the motor.
The higher the voltage, the greater the motor’s torque and speed.
Be careful not to connect or disconnect the motor while the module is powered, as this will damage the integrated circuit.
SPECIFICATIONS AND FEATURES
Input voltage: 5V
Maximum supply current: 70 mA
Voltage source for the motor: 7 V – 30 V
Current control: 150 mA – 750 mA per phase
Input power: 350 mA
Base device: A3967
Dimensions: 4.7cm * 2cm

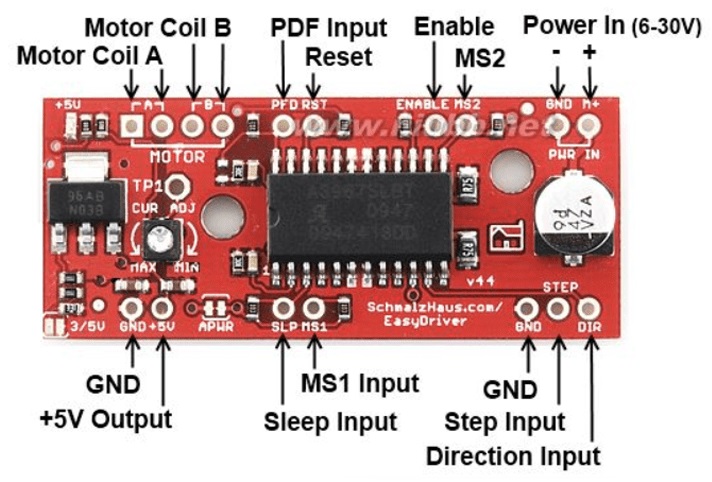

Pinout
