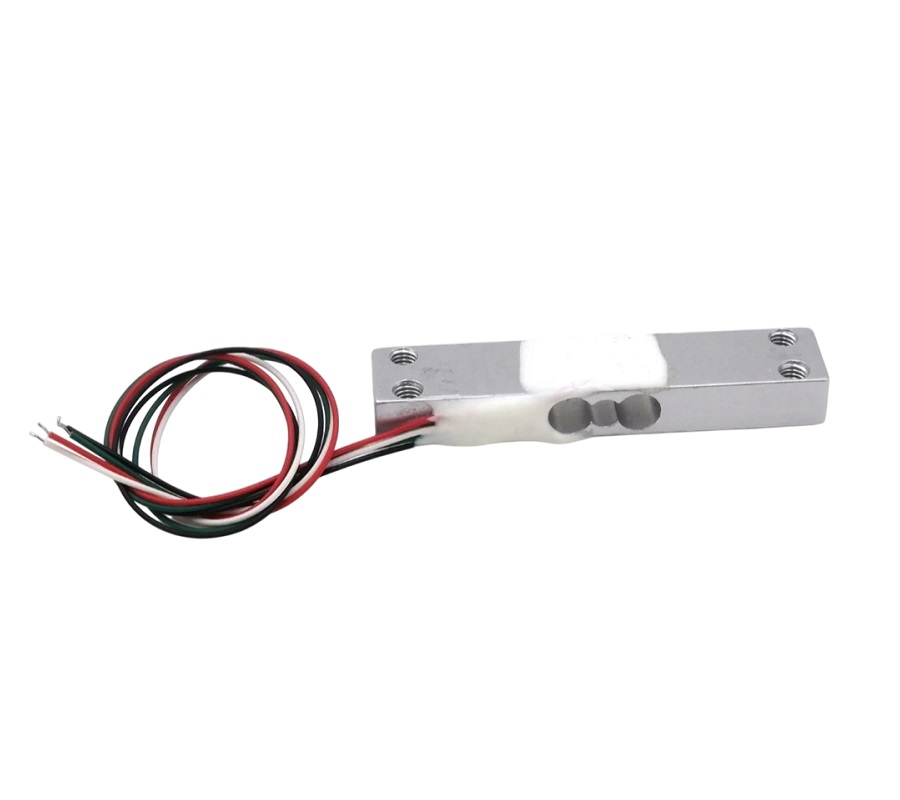

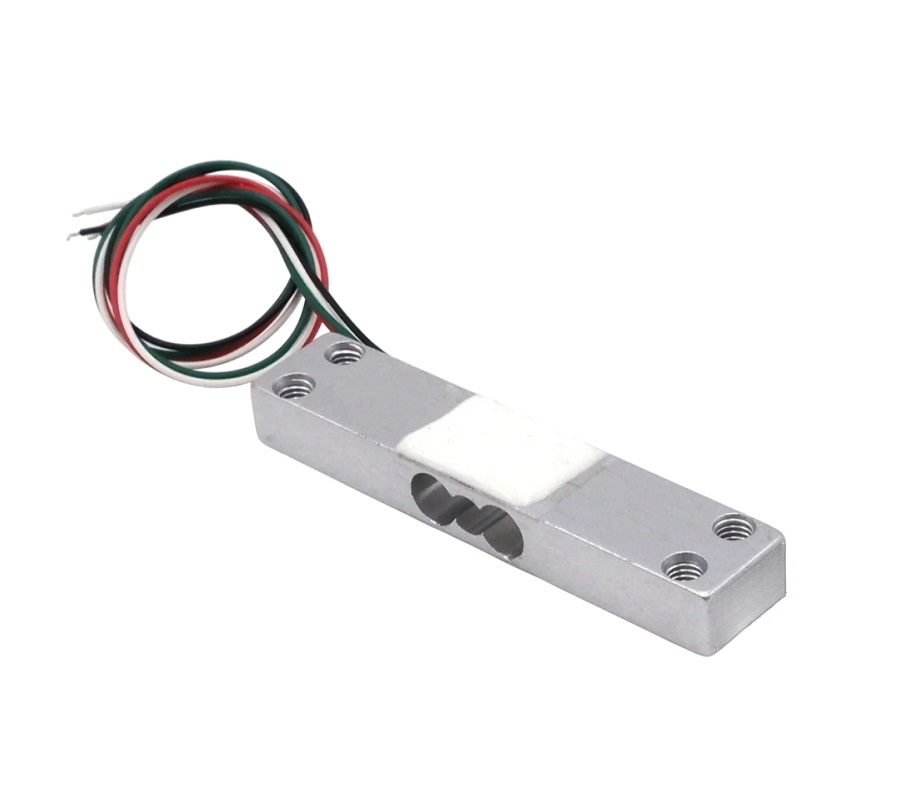

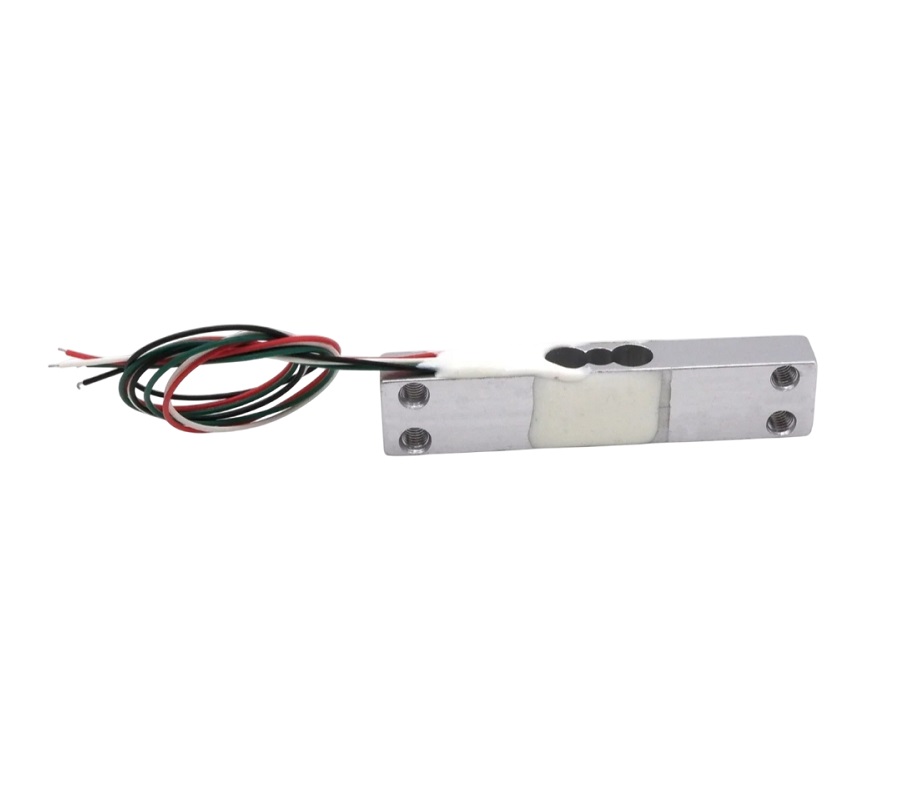

سنسور وزن – لودسل 500 گرمی

Weighing Load Cell Sensor 500g For Electronic Weighing Scale
Electronic weighing machine uses load cell to measure the load or pressure produced by the load, here most load cells are follows the method of strain gauge, Which converts the pressure (force) into an electrical signal, these load cells have four strain gauges that are hooked up in a Wheatstone bridge formation.
When we apply load the strain gauge resistance will change and hence the output voltage from the load cell get changes by the way we can measure the load value.
DESCRIPTION
Material: Aluminium
Rated Load: 500g
Input End: Red+, Black-
Output End: Green+, White-
Dimensions: 47 x 10 x 6 mm
