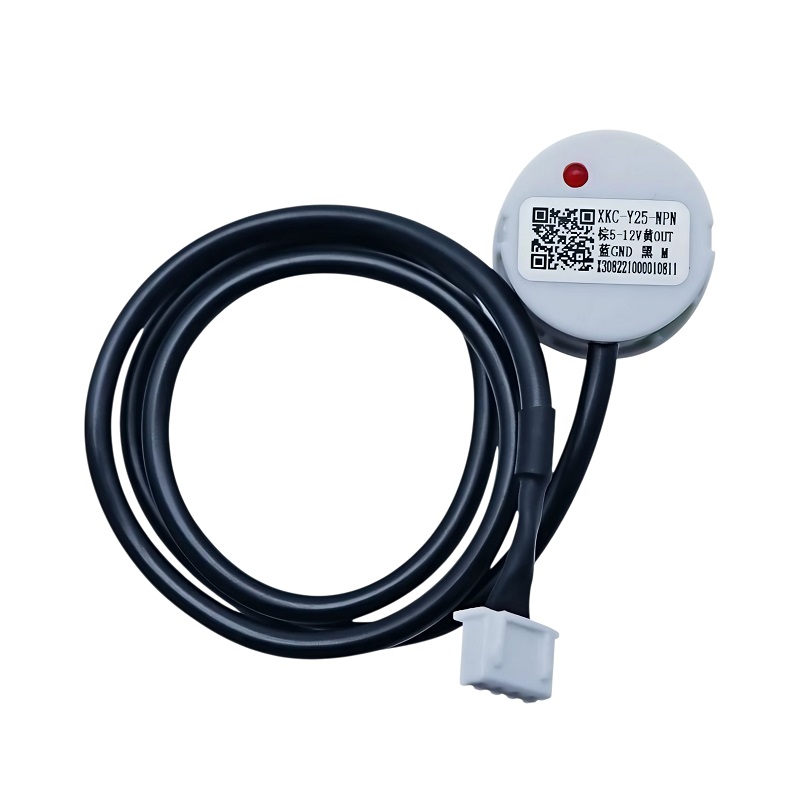

سنسور تعیین سطح مایع غیر تماسی XKC-Y25

XKC-Y25-V Capacitive Liquid Level Sensor, Non-contact Water Detection Sensor
DESCRIPTION
Intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won’t be influenced by container wall thick- ness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high pressure airtight container. It can be widely used and has no special require- ment for liquid medium and material of container.
FEATURES
Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection.
Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life.
High stability, high sensitivity, strong anit-interference ability make sure it won’t be affected by electromagnet, special designed to deal with power frequency interference and common mode interference.
Compatible with most 5 ~ 24V power adapter.
Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, the sensing distance (container wall thickness) can reach 20mm;
Testing is accurate and stable and boiling water level can be detected. Liquid, powder, particles can all be detected.

Product information

Datasheet: XKC-Y25-V

Using XKC-Y25-V Liquid Sensor on Arduino

Application
Aluminium water tower
Agricultural protection
Waste water systems
Medical equipments
Fish tanks circulation system
Intelligent home appliances
Industry automation

WIRING PRINCIPLE

INSTALLATION METHOD
