دستگاه اکسس کنترل RFID T11 125KHZ

RFID access control controller T11 ID Model
The access control device or smart RFID door opener model T11 has the ability to store 1000 tags with a frequency of 125 kHz and can control the door with either a card, a password or a combination.
can control the door with both a card and a password or in combination.

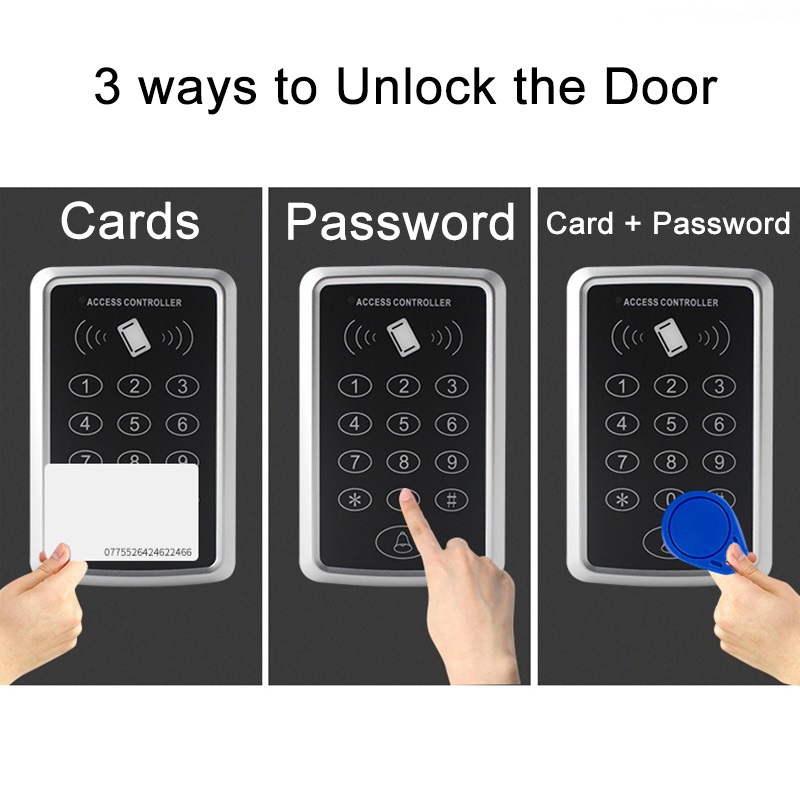

The device can be used in three modes
Using a card
Using a password
Using a card and a password

The output of this module is in the form of a relay and can be connected to the door opener of the house.
You can also connect a doorbell to this device and sound a bell by pressing the bell button on the device.
Product features
Output type: relay
Power supply: 12V
Consumption current: 100ma
Maximum storage memory: 1000 users
Output active time: 5 seconds
Card recognition distance: 1 to 8 cm

Datasheet: RFID T11 125KHZ

Also, due to the type of output, which is in the form of a relay, the device can be connected to any other device.
The device weighs 300 grams and can operate in a humidity of 20~80%.
This device also has internal memory to store cards during a power outage.

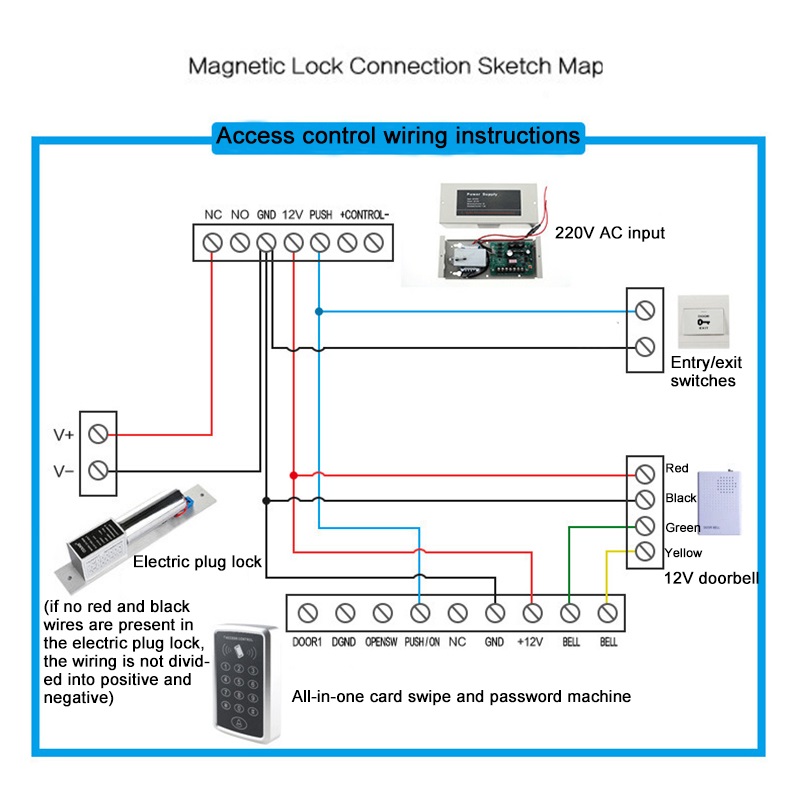

How to connect and use the device as a smart RFID door opener
