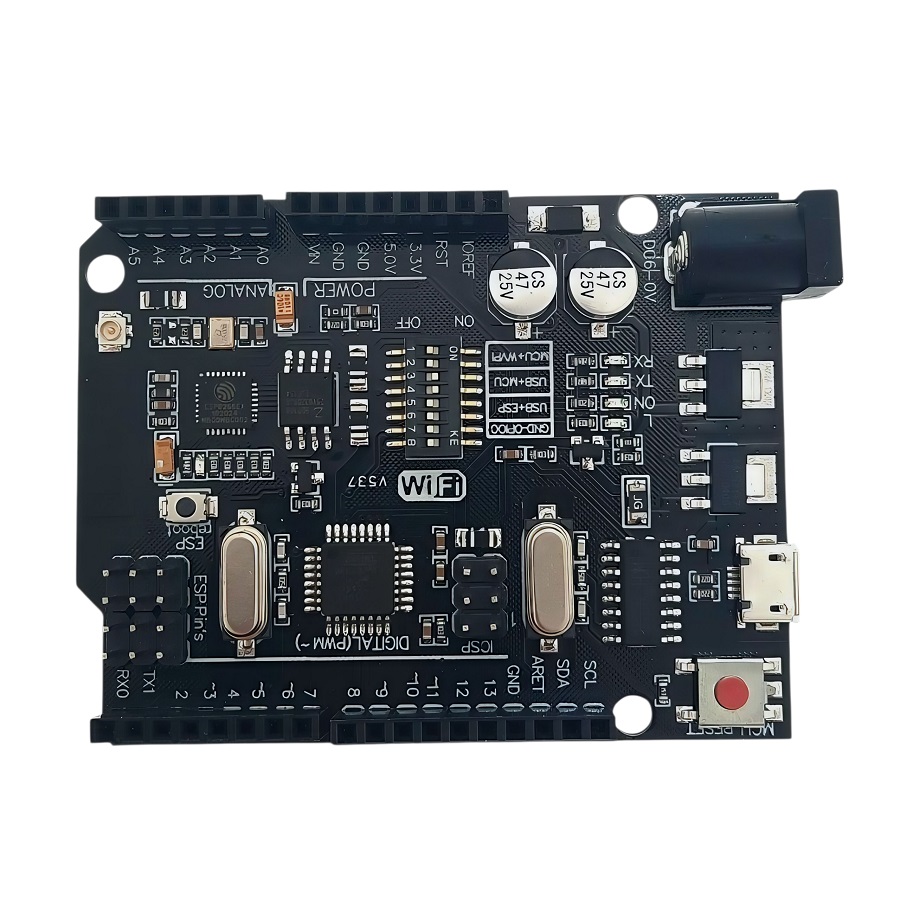

برد آردوینو UNO WIFI دارای پردازنده ATmega328P و ESP8266

WiFi UNO board with ATmega328P+ESP8266 processor has CH340G converter
Description
The Arduino Uno WiFi is an Arduino Uno with an integrated WiFi module.
The board is based on the ATmega328P with an ESP8266WiFi Module integrated.
The ESP8266WiFi Module is a self contained SoC with integrated TCP/IP protocol stack that can give access to your WiFi network (or the device can act as an access point). One useful feature of Uno WiFi is support for OTA (over-the-air) programming, either for transfer of Arduino sketches or WiFi firmware.
The Arduino Uno WiFi is programmed using the Arduino Software (IDE), our Integrated Development Environment common to all our boards and running both online and offline.
It is a customized version of the classic ARDUINO UNO R3 board.

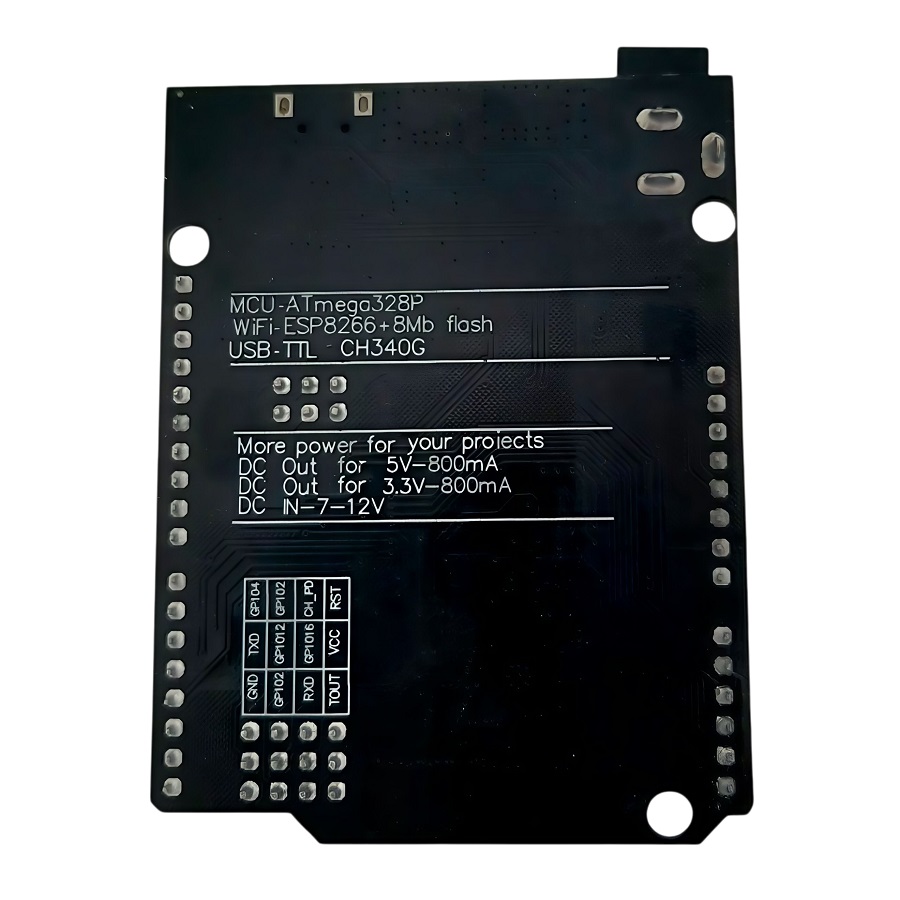

It is included full integration of microcontroller Atmel ATmega328 and IC Wi-Fi ESP8266 with 8 MB flash memory, and USB-TTL converter CH340G on one board.
All modules can work together or independently.
It also includes a switch mode of operation with 8 position.
The board has a DIP switch, to connect the modules.

It is important that when the ESP8266 module is programming, it is necessary to press the button “ESP Reboot”
Application
IOT
Remote control
Embedded system
Specifications/Features
Wi-Fi chip: ESP8266
processor chip: ATmega328P
USB Converter: CH340G
Flash: 8MB
Power put: 5v 800mA
Protocol: Wi-Fi 802.11 b/g/n
Wi-Fi frequency: 2.4GHZ
Digital pin: 14
Analog Pin: 6
Clock frequency: 16MHz
Interface: serialOTA
Input voltage: 5V with a maximum current of 500mA via USB
Logic level: 5V
Operating temperature: -40 to +125 degrees Celsius
Dimensions: 53.34×68.58mm
Package include:
1 x Wi-Fi R3 ATmega328P + ESP8266 USB-TTL CH340G
