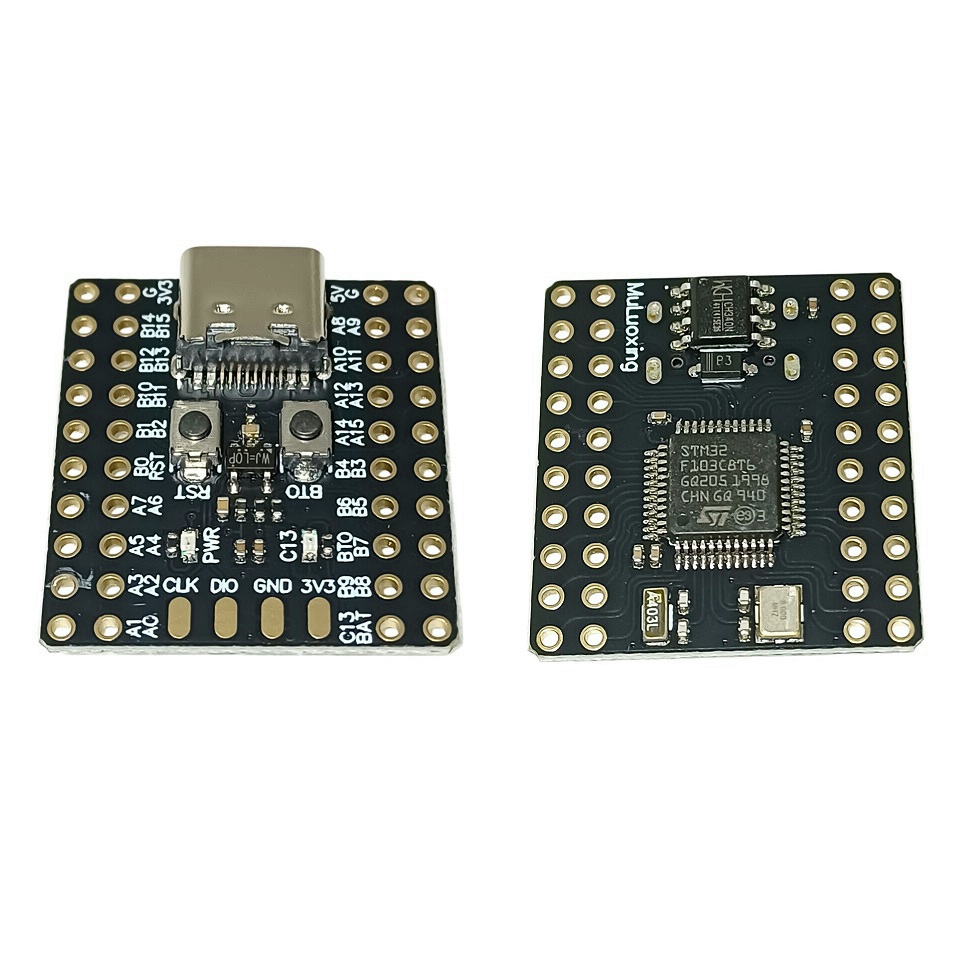

STM32F103C8T6 mini CH340 board
Data transmission (either serial port or USB), MINI32 can download programs through the onboard serial port Small volume is the same as Lead out all IO ports on both sides of the needle row, and separately lead out the SWD download port (both sides of the needle row IO ports are simultaneously led out)
Applicable to small volume control schemes.
TYPE-C: Choose between power input and USB/serial port (CH340N).
Key: RST (reset button), BTO (BOOT mode selection button).
LED: PWR (POWER power indicator), C13 (user control indicator), PC13 control LED negative Extreme.
Key: RST (reset button), BTO (BOOT mode selection button).
LED: PWR (POWER power indicator), C13 (user control indicator), PC13 control LED negative Extreme.
![](https://elecohm.com/wp-content/uploads/2024/01/stm32-mini-1.webp)
![](https://elecohm.com/wp-content/uploads/2024/01/stm32-mini-2.webp)
PCB external dimensions (excluding SWD download port)
25.40 * 22.86mm (100mil=2.54mm)
PIN spacing: 2.54mm
The distance between the needle rows on both sides
15.24mm (600mil) on the inner side and 20.32mm (800mil) on the outer side.
25.40 * 22.86mm (100mil=2.54mm)
PIN spacing: 2.54mm
The distance between the needle rows on both sides
15.24mm (600mil) on the inner side and 20.32mm (800mil) on the outer side.
![](https://elecohm.com/wp-content/uploads/2024/01/stm32-mini-3.webp)
TYPE-C port function
The core board pursues a small size with a single TYPE-C port design, and the USB and serial port functions are optional and mutually exclusive Excluding design, when welding U2 (CH340N) and not welding R4 and R5, the C port is used as a serial communication function,When welding R4 and R5 without welding U2 (CH340N), the C port is used as a USB communication function.
About the Hardware Design of TYPE-C Port CC Port
Both CC1 and CC2 pins are suspended:
only the USBA to TYPE-C data cable can be used for power supply.
Short circuit CC1 and CC2 pins and pull down 5.1K resistor:
use fast charging power supply and EMARK core simultaneously
The dual C-port data cable of the chip will not be powered, and all other configurations can be powered normally.
CC1 and CC2 pins pull down 5.1K resistors respectively:
standard design, both can be powered, recommended for use.
The core board pursues a small size with a single TYPE-C port design, and the USB and serial port functions are optional and mutually exclusive Excluding design, when welding U2 (CH340N) and not welding R4 and R5, the C port is used as a serial communication function,When welding R4 and R5 without welding U2 (CH340N), the C port is used as a USB communication function.
About the Hardware Design of TYPE-C Port CC Port
Both CC1 and CC2 pins are suspended:
only the USBA to TYPE-C data cable can be used for power supply.
Short circuit CC1 and CC2 pins and pull down 5.1K resistor:
use fast charging power supply and EMARK core simultaneously
The dual C-port data cable of the chip will not be powered, and all other configurations can be powered normally.
CC1 and CC2 pins pull down 5.1K resistors respectively:
standard design, both can be powered, recommended for use.
