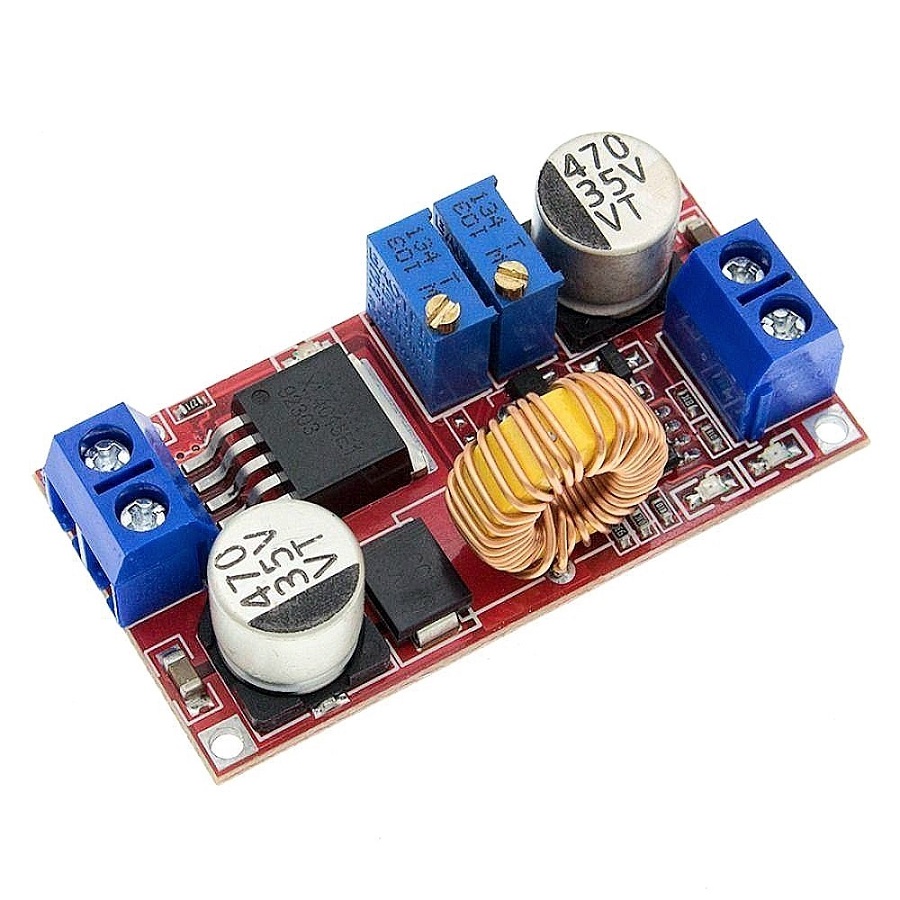

PRODUCT DESCRIPTION
APPLICATIONS
Lithium battery charger
LED Driver
NOTE
Do not combine connection of input GND and output GND, These are separated!
FEATURES
High power module, high efficiency, 5A max current, low ripple
Three main applications:
Used as an ordinary step-down modules with overcurrent protection capabilities.
To charge various voltage lithium batteries, lead-acid batteries, nickel-cadmium or nickel-metal hydride batteries (battery), charger for solar panels, wind turbines and other similar applications.
As high-power LED constant current driver module.
Has constant voltage and constant current modes, the indicator leds indicates which mode the module is currently operating in.
Current limited protection, output short circuit should not damage module.
PARAMETERS

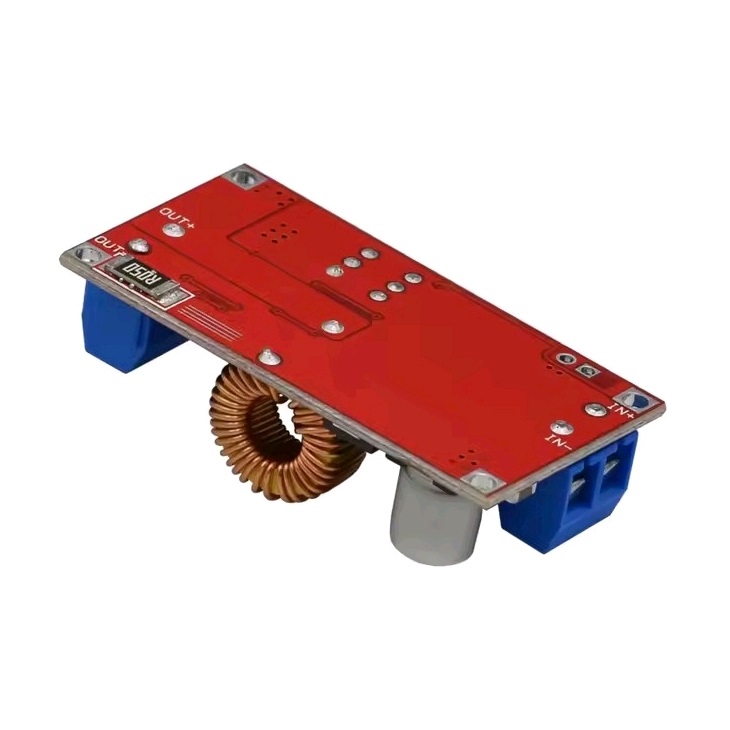

Input: IN + input positive, IN- input negative
Output: OUT + output positive level, OUT- output negative
Input Voltage: 5-32V
Output voltage: 1.25-30V continuously adjustable
Output current: adjustable, 5A
Output Power: 75W maximum
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes (limited current 8A)
Over temperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if required then place a large power diode on the input in series)
Installation: four 3mm mounting points
Connection: terminals or solder terminals, V-IN is the input, V-OUT output
Module Size: Length 61.7mm Width 26.2mm height 15mm
Weight: 25g
