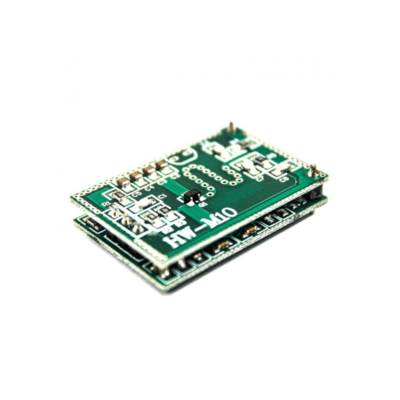

The microwave motion sensor module HW-M10 is a technology that works based on the automatic measurement of the Doppler effect.
This product has high sensitivity and a wide range of sensitive angle and applied voltage.
This product is widely used in light changes based on human presence and anti-theft alarms.
HW-M10 flat antenna sends high frequency electromagnetic wave (10.525GHz) and receives the emitted echo.
The HW-M10 also detects echo changes due to a small movement.
Signals are most likely to be detected when passing through doors and windows or thin walls.
Features
Anti-interference capability, stable performance, no ambient temperature
Compact and small, easy installation, fast response, high sensitivity
Distance sensors can also detect 180×360 angles.
Radar can pass through non-metallic objects, such as wood, glass, and plastic, but it can pass through concrete walls and metal plates.
The best result is achieved when people and objects move towards the sensor.
specifications
Power supply: DC12V (6-22V
Static current: <1mA
Output level: High V / Low 0V
Trigger: Repetition trigger
Delay time: default 3 seconds – adjustable between 3 and 200 seconds
Dimensions: 6 * 20 * 30 mm
Detectable distance: 1-30m
Angle: 180×360 degrees
Sending and receiving power: <2mW
