XY-T01 Electronic Temperature Controller, Control Module -50Celsius to 100Celsius Temperature Control Switch Boards
Description
Product features
the electronic thermostat power supply is DC 6-30V or 5V micro-USB, the control load current is 10A (max), the test temperature is from -50 to 110Celsius, the temperature control accuracy is 0.1 Celsius, the refresh rate is 0.5 seconds, and the sensor length is 0.5 meters
Product function
this digital temperature control module has heating mode (“H”) and cooling mode (“C”), with the function of high temperature alarm (“ALA”), delayed start (“OPH”), temperature correction function -10.0~10.0Celsius (“OFE” ), remote parameter reading/setting, real-time temperature report and more
Working modes
this electronic temperature controller has 2 working modes, heating mode (start temperature is lower than stop temperature) and cooling mode (start temperature is higher than stop temperature), range from -50Celsius to 110Celsius; The high temperature control accuracy reaches 0.1Celsius
Waterproof probe

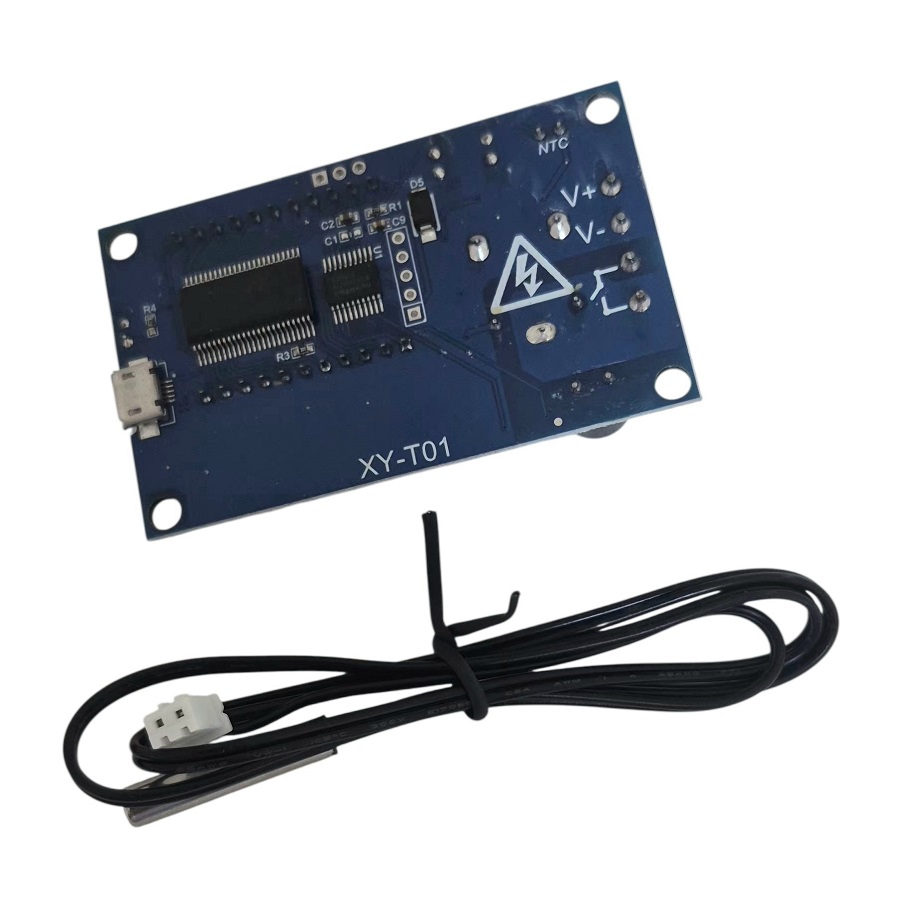

XY-T01 electronic thermostat is equipped with a 0.5-meter NTC10K probe, which is made of stainless steel, is waterproof and not easy to rust, easy to use and can last for a long time
Use for
the electronic thermostat can be widely applied in intelligent home and industrial equipment, suitable for household appliances, office machines, audio, automobiles, etc.
Working mode/setting temperature/return temperature setting

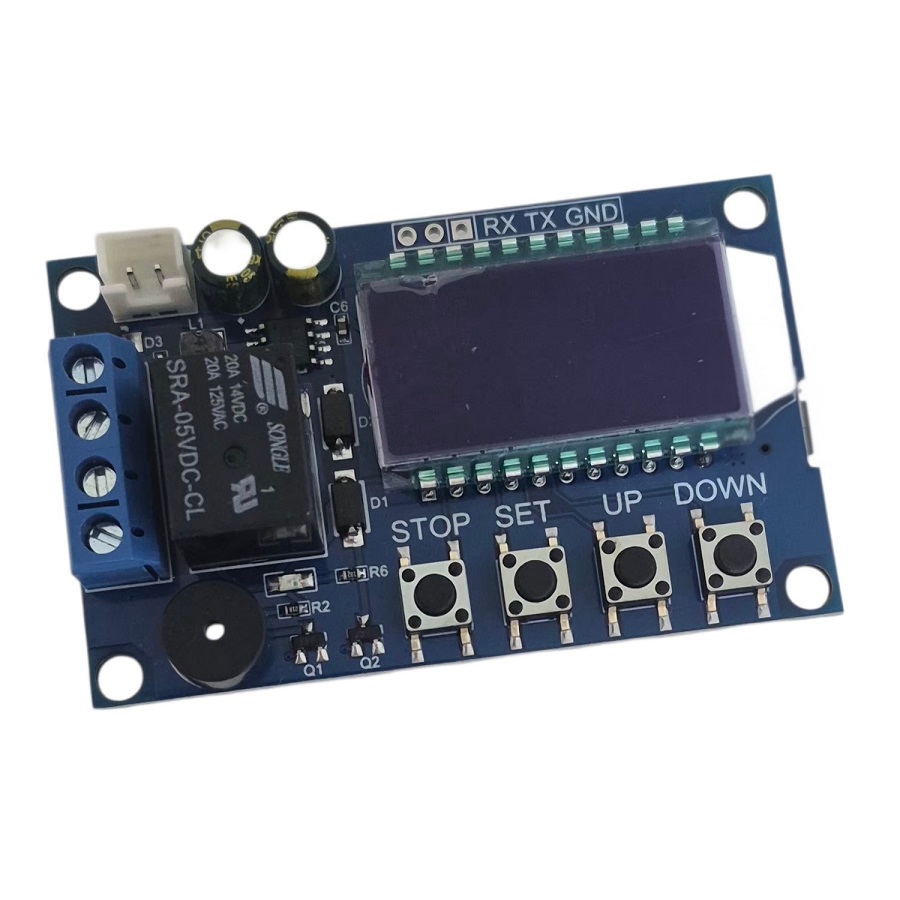

1. In the running interface, short press the “set” key to enter the quick setting interface
2. After entering the quick setting interface, short press the “set” key to switch the parameters you want to set (work mode/set temperature/return temperature)
3. Use the “up” “down” key to modify the parameter value, and they support short press/long press
4. Press and hold the “set” button for more than 3 seconds or without any button operation for 6 seconds , it will save the parameters and automatically exit the quick setting interface.
Set ALA/OPH/OFE (alarm temperature /delay starting setting/temperature correction)
5. In the running interface, long press “set” for more than 3 seconds to enter the parameter setting interface;
Product model: XY-T01
Power supply: DC6.0-30v or 5v micro-USB
Measuring input: NTC10K/B3950
Output type: relay output 10A
Probe type: waterproof NTC probe
High temperature alarm ALA: sound-light alarm
Delay start OPH: 0-9999 minutes
Temperature correction: -10 to 10Celsius, actual temperature = measuring temperature + calibration value
Colour:blue
Material:Electronic component
Size:About 68 x 42mm
Probe’s length: 0.5 m
Only the above package content, other products are not included.
