50A Hall Current Sensor Module Linear Analog AC DC Current Sensor ACS758LCB-050B High Accuracy for RC Model DIY Arduino
Specifications
Sensor: ACS758LCB-050B
Power supply voltage: DC3.3-5.5V
Current consumption: 13.5mA
Sensor type: Hall effect – open loop
Measurement range: negative 50 to positive 50 amps AC and DC
Output: Ratiometric, Voltage
Sensitivity: 40mV / A
Linearity: ± 1%
Accuracy: ± 2%
Response time: 4µs
Measurable current frequency: DC ~ 120KHz
Working temperature: minus 50 to 150 degrees Celsius
Dimensions: 48X37X24mm

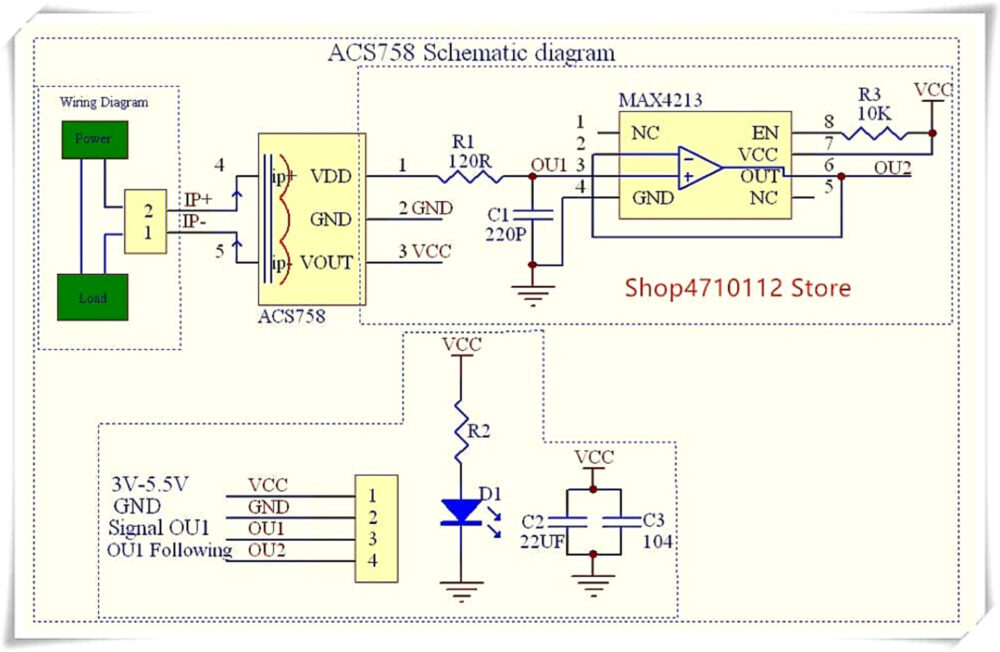

Pin define
IP+: Terminal for current being sampled
IP-: Terminal for current being sampled
VCC: Device power supply terminal, 3V-5.5V input
GND: Signal ground terminal
OU1: Analog output signal from hall sensor VIOUT pin through an RC filter
OU2: Analog output signal from hall sensor VIOUT pin through operational amplifiers
