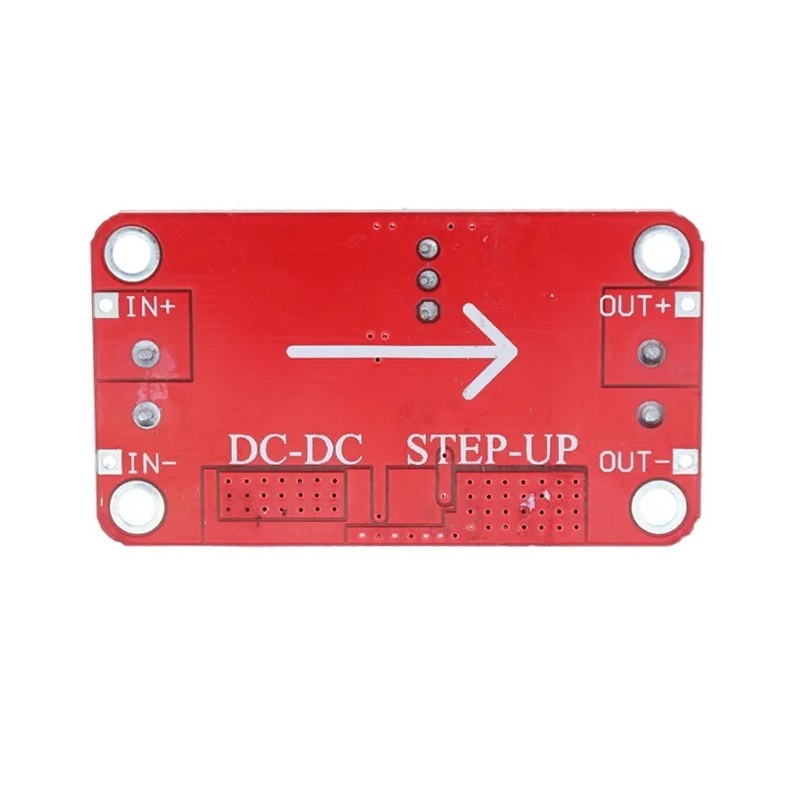

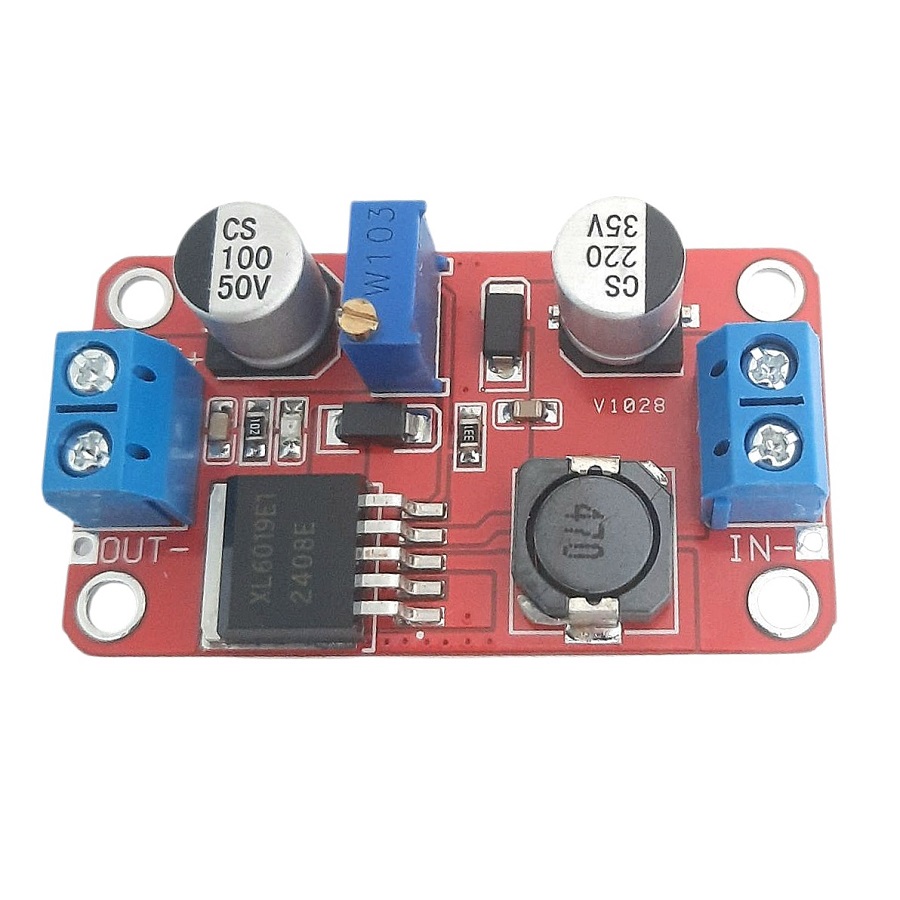

XL6019 Step-Up DC-DC Converter Module (5 A)
Features
1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance.
The built-in thermal protection, over-current protection reliability.
2. Wide input voltage range, the input voltage up to 35V.
3. Adjustable output voltage, maximum support 40V.
4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
5. System conversion efficiency can achieve 90% above, convenient thermal design.
6. TO263-5 l standard packaging, suitable for booster application within 30W.
Overtemperature protection and overcurrent protection
This product is a high voltage switching power supply, built into a BOOST topology.
The product is useful in a wide range of applications and is small in size.
It can be easily used in spaces without good ventilation at currents up to 2.5 A. Careful!
The output voltage must be at least 1.5 V higher than the input voltage.
Technical specifications
Integrated circuit used: XL6019
Topology: Boost
Maximum input voltage: 3 V – 40 V
Recommended input voltage: 3 V – 35 V
Maximum output voltage: 5 V – 45 V
Recommended output voltage: 5 V – 40 V
Maximum input current: 0 – 5 A
Recommended input current: 0 – 3 A
Efficiency: up to 94%, depending on the operating point
Operating frequency: 220 kHz
Maximum Rip: 100mV
Voltage Accuracy: 0.5%
Operating temperature: -20 ~ + 85 degrees Celsius
Dimensions: 50 x 28 x 13 mm
