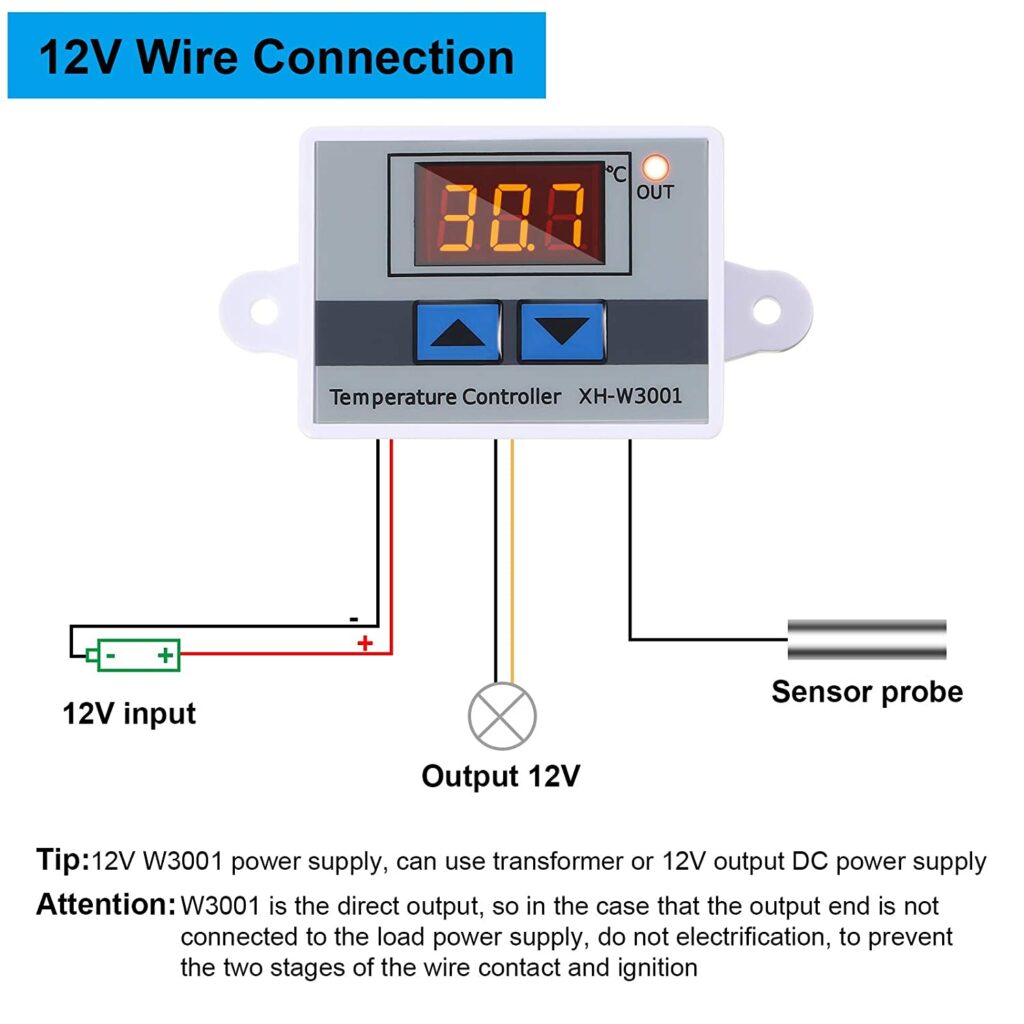

XH-W3001 Digital LED Temperature Controller (DC12V, 10A)
Reliable to use
The performance of the electronic temperature control switch module is stable, and its control accuracy is 0.1 degrees Celsius. Suitable for equipment boxes, temperature control protection devices, etc.
Product model: XH-W3001
Input voltage: 12V
Output voltage: Direct output
Output current: 10A max
Maximum power: 120W
Temperature control accuracy:0.1℃
Pitch of the installation: 73 mm (round hole diameter: 4 mm)
Size: 60 x 45 x 31mm
1 x Digital LED temperature controller module XH-W3001
Instruction for use
Setting the start and stop temperature of the relay can be done as follows:
Press and hold down the left button (up arrow) until the screen starts blinking. Now, using the two buttons, adjust the temperature at which you want the relay to turn on.
Hold down the right button (down arrow) until the screen starts blinking. Now, using the two buttons, adjust the temperature at which you want the relay to turn off.
This thermostat can be used for both heating and cooling appliances.
For heating appliances, the starting temperature must be lower than the stop temperature.
For cooling appliances, the starting temperature must be higher than the stop temperature.
Note: Images are for reference only See Product Specifications.
