Uno R3 Board with USB Cable compatible with Arduino
The Uno R3 with Cable is a micro-controller board base on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything need to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
“Uno” means one in Italian and is the name to mark the upcoming release of Arduino 1.0.
The Uno and version 1.0 will be the reference versions of Arduino, moving forward.
The Uno is the latest in a series of USB Arduino boards and the reference model for the Arduino platform; for a comparison with previous versions, see the index of Arduino boards.
1. Micro-controller : ATmega328.
2. Operating Voltage : 5V.
3. Input Voltage (recommended) : 7-12V.
4. Digital I/O Pins : 14 (of which 6 provide PWM output).
5. Analog Input Pins : 6.
The Uno R3 can be powered via the USB connection or with an external power supply.
The power source is selected automatically.
External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery.
The adapter can be connected by plugging a 2.1mm center-positive plug into the board’s power jack.
Leads from a battery can be inserted in the Gnd and Vin pin headers of the POWER connector.
The board can operate on an external supply of 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may be unstable.
If using more than 12V, the voltage regulator may overheat and damage the board.
The recommended range is 7 to 12 volts.

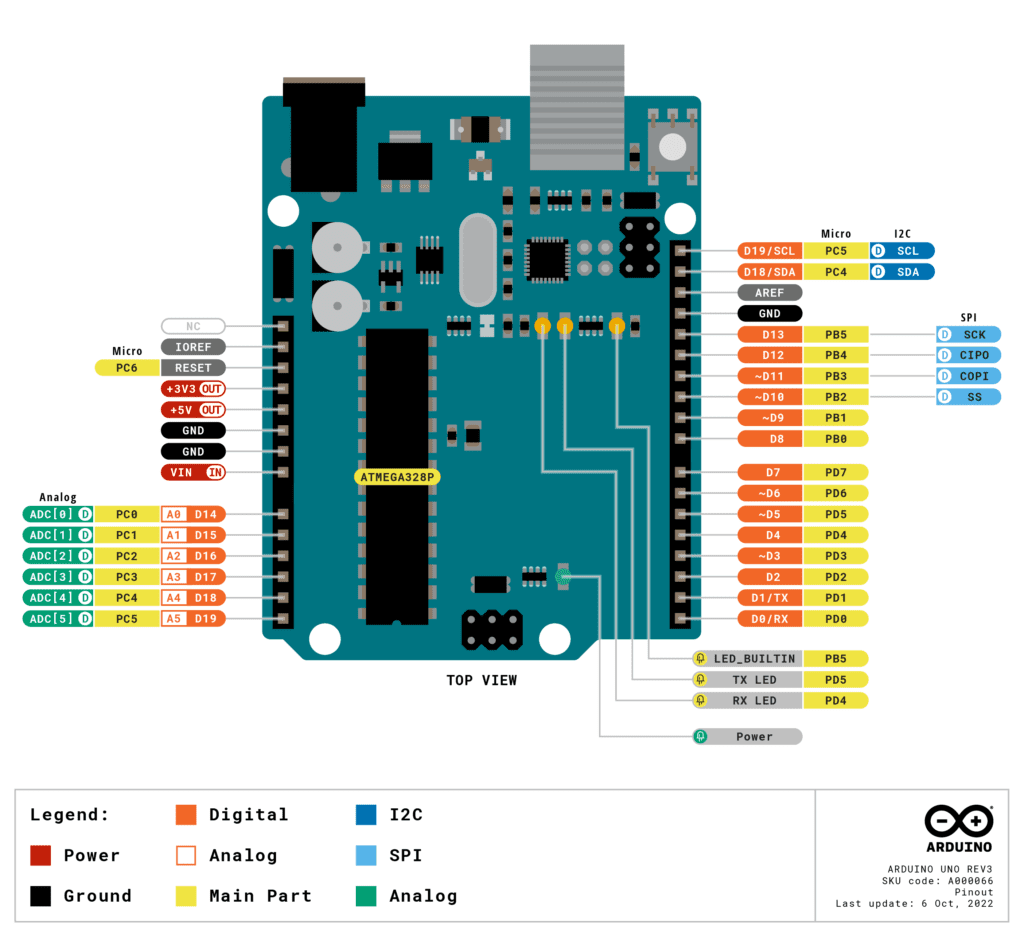

The power pins are as follows
• VIN. The input voltage to the Arduino board when it’s using an external power source (as opposed to 5 volts from the USB connection or another regulated power source).
• You can supply voltage through this pin, or, if supplying voltage via the power jack, access it through this pin.
• 5V.This pin outputs a regulated 5V from the regulator on the board.
• The board can be supplied with power either from the DC power jack (7 – 12V), the USB connector (5V), or the VIN pin of the board (7-12V).
• Supplying voltage via the 5V or 3.3V pins bypasses the regulator, and can damage your board.
• We don’t advise it.
• 3V3. A 3.3 volt supply generated by the onboard regulator.
• The maximum current draw is 50 mA.
• GND. Ground pins.
• IOREF. This pin on the Arduino board provides the voltage reference with which the microcontroller operates.
• A properly configured shield can read the IOREF pin voltage and select the appropriate power source or enable voltage translators on the outputs for working with the 5V or 3.3V.
Note
Product Images are shown for illustrative purposes only and may differ from actual product.
